200mm Space System

Hardware & Physical Specs:

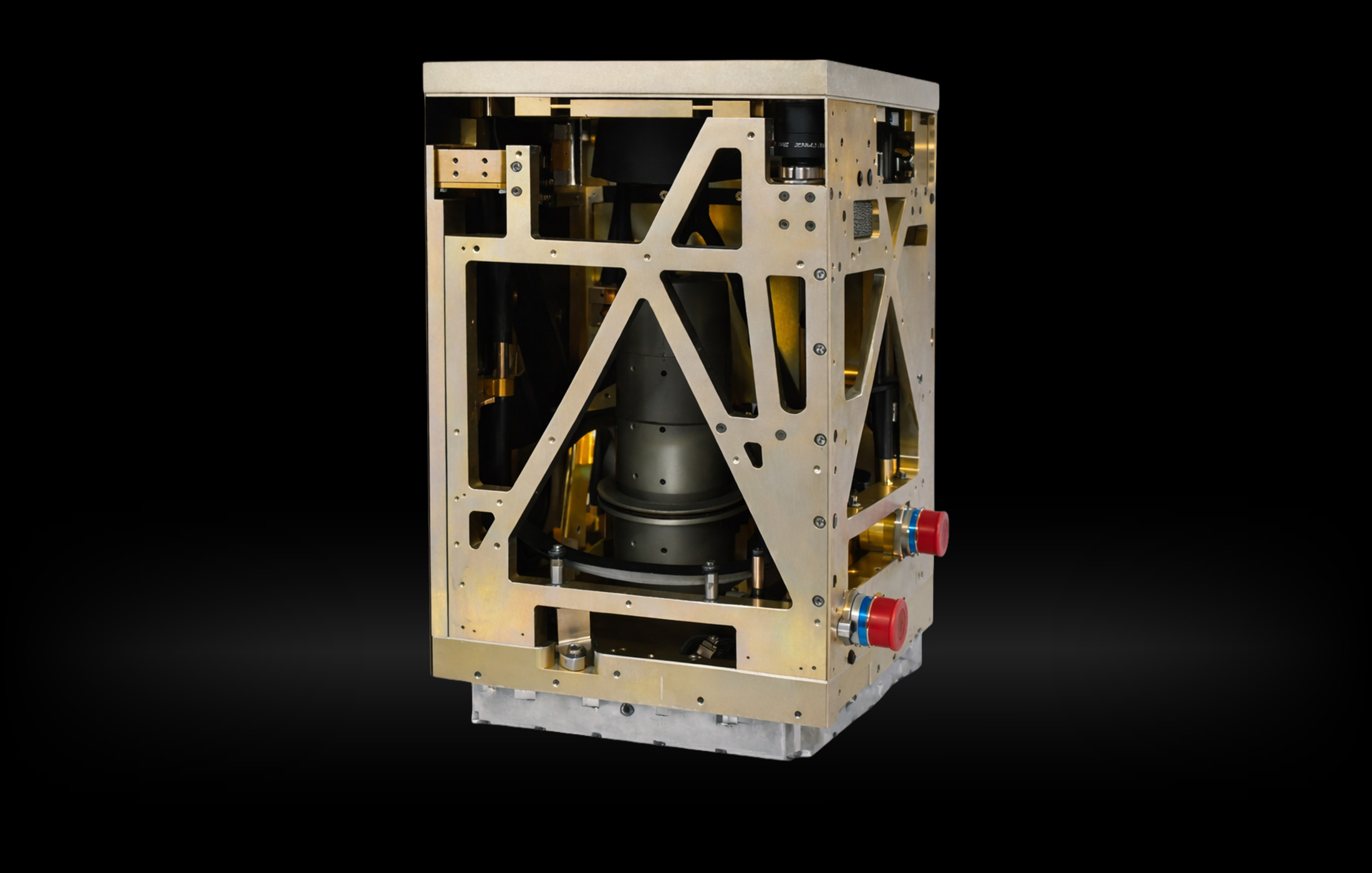

Space Systems Interactive

Secondary sensors enable Earth observation, docking, and orbital refueling missions:
  • 20 degree field-of-view, 0.5 megapixel long-wave infrared sensor
  • 20 degree field-of-view, 12 megapixel visible light sensor

  • Shutter configured nominally open or nominally closed
  • 7075 aluminum alloy

  • 200mm f/3.8 primary aperture with 3.5 degree FOV on a 60MP monochrome sensor
  • Zerodur mirrors with protected aluminum coating

  • Athermalized construction; titanium, stainless steel, 7025 aIuminum, and Invar

  • Bus controlled heaters and resistance temperature detectors. 10 gig or 1 gig ethernet TCP/IP for avionics communication
  • 70 TOPS onboard edge compute for your algorithms
  • Embedded GPU, DSP, and CPU

Designed for Any Mission

Features that execute any mission effectively and efficiently.

Earth Observation

Capture Earth observation data in long-wave infrared and visible spectrum with multiple apertures. Enhance fidelity via hyper resolution scaling algorithms.
Space-Based Astronomy

A wide-field 62-megapixel primary sensor captures high fidelity imagery of the cosmos. Precision timing support enables binary star observation, exoplanet occultation, and assisted navigation and pointing.
Space Domain Awareness

Unimpeded by atmosphere, capture crisp imagery of resident space objects. Capture, calculate, and refine orbits and covariance in real time with heritage extraction algorithms.

Pattern of Life

Rendezvous and proximity operations that enable advanced refueling and orbital maintenance missions using multiple apertures synchronized and tailored for near and far field capture.

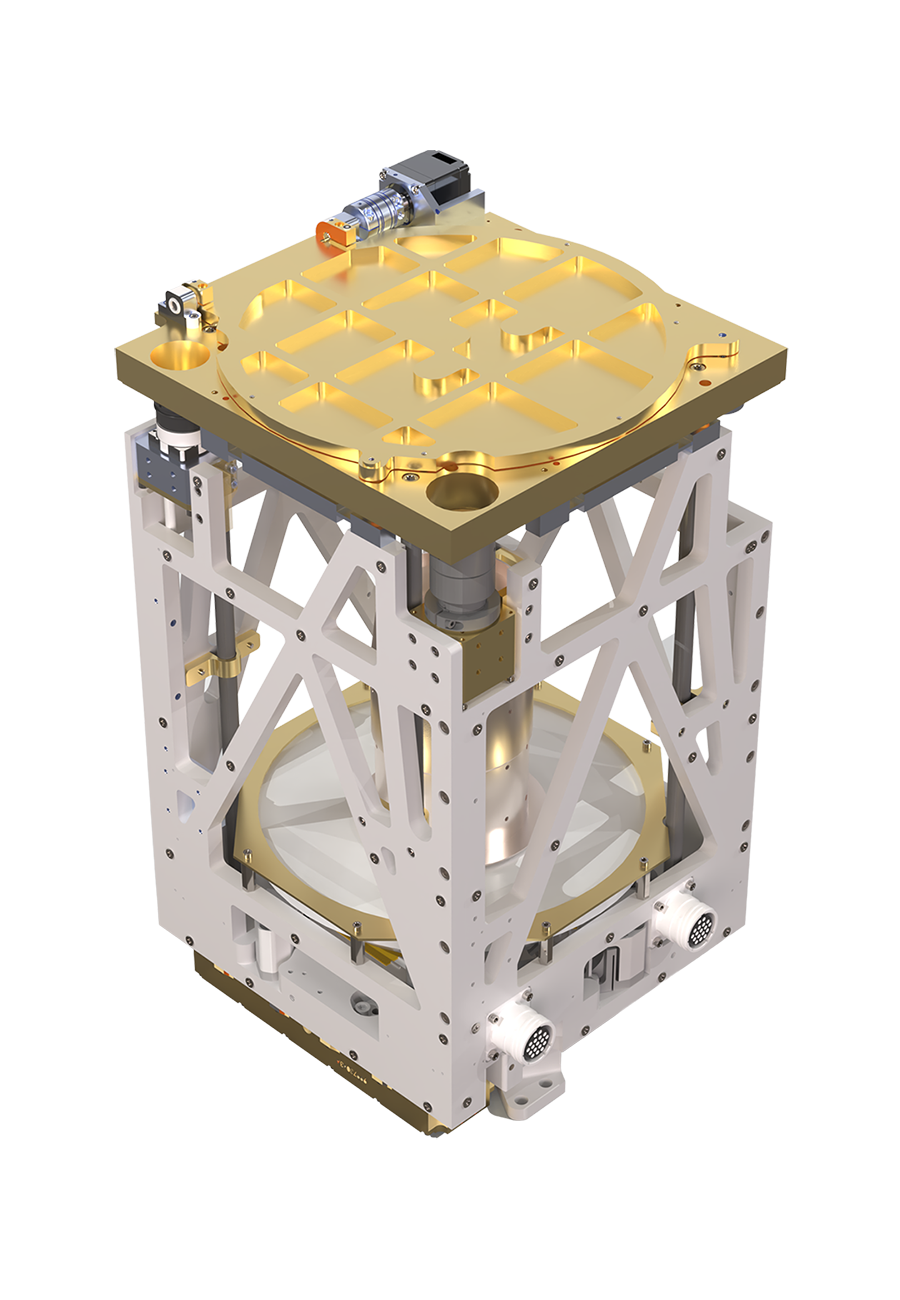

200mm Space System
  • A three-aperture visible (VIS) and long-wave infrared (LWIR) multispectral imaging payload package with sensors, optics, and processing all onboard
  • Designed to be mounted externally to a satellite bus with low SWaP and seamless software integration

Available Now
Buy Now

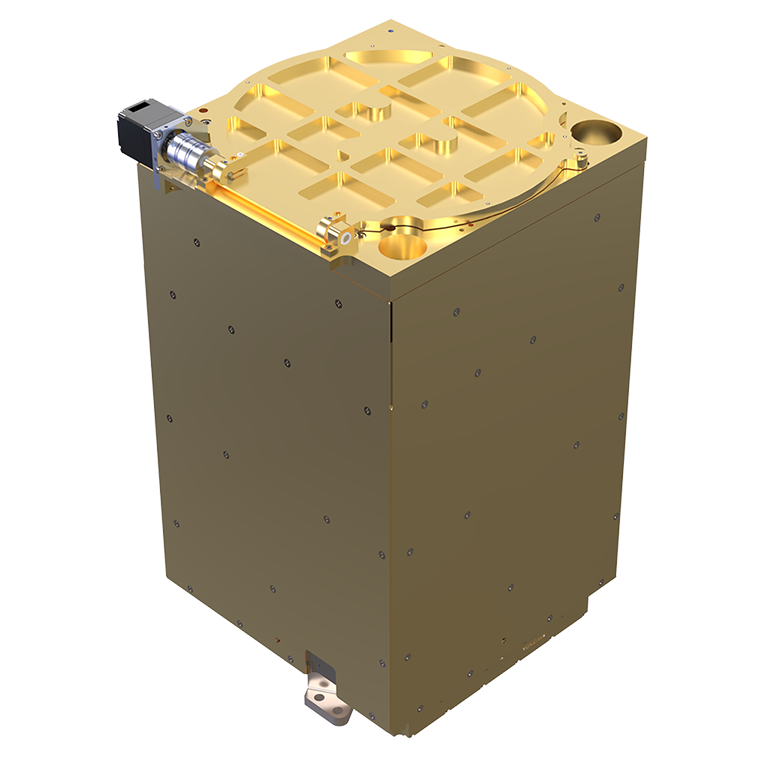

500mm and Above
  • The largest commercially available space-rated optics and sensor package with f-ratios from f/3 to f/8
  • Integrated with advanced sensors, avionics, focusers, and tip/tilt gimbals
  • Capture more detail and see further than ever before

Available 2026
Contact Us
Space Optics Solutions
  • We’re excited to partner on advanced optical systems that leverage our deep technical expertise to make your novel designs a reality
